Special material series
Which we have carefully crafted for you
Smart II Series Material
Exclusive IIs Series Material
Exclusive II Series Material
Luxury IIs Series Material
Luxury II Series Material
Smart II Series Material
The construction materials in this series focus on value and affordability, ideal for those seeking a simple yet functional house for example water-saving toilets from American Standard, heat insulation material such as autoclaved concrete and thermal insulation. Additionally, these materials are long-lasting, weather-resistant, and environmentally friendly.
Exclusive IIs Series Material
The construction materials in this series offer heat insulation quality such as 10 cm. thick autoclaved concrete which keeps the house cool and lowers the electricity costs. Additionally, the bedrooms are equipped with the PD Fresh Airflow - air ventilation system, model Fresh I, which provides fresh air, prevents mold, and filters out PM 2.5 dust. The floors on both levels are made of 12 mm. thick laminated wood. This makes the home energy-efficient and environmentally friendly.
Exclusive II Series Material
The construction materials in this series offer heat insulation quality such as 10 cm. thick autoclaved concrete which keeps the house cool and lowers the electricity costs. Additionally, the bedrooms are equipped with the PD Fresh Airflow - air ventilation system, model Fresh II, which provides fresh air, prevents mold, and filters out PM 2.5 dust. The floors on both levels are made of 8 mm. thick laminated wood. This makes the home energy-efficient and environmentally friendly.
Luxury IIs Series Material
The materials in this series are designed to reduce external heat, featuring 20 cm thick autoclaved concrete and 6-inch thermal insulation, which help keep the home cool and save on electricity costs. The entire house is also equipped with the PD Fresh Airflow- air ventilation system, model Fresh II, which provides fresh air, prevents mold, and filters out PM2.5 dust. High-quality materials are used throughout, focusing on modern, luxurious designs that cater to a luxury lifestyle.
Luxury II Series Material
The materials in this series are designed to reduce external heat, featuring 20 cm thick autoclaved concrete and 6-inch thermal insulation, which help keep the home cool and save on electricity costs. The entire house is also equipped with the PD Fresh Airflow- air ventilation system, model Fresh Plus, which provides fresh air, prevents mold, and filters out PM2.5 dust. High-quality materials are used throughout, focusing on modern, luxurious designs that cater to a luxury lifestyle.
Material Group
1. Materials and equipment for the elderly and health
2. Materials and equipment for Energy-Efficiency and Heat Insulation
3. Eco-Friendly Materials and Equipment
4. Construction technology and innovative materials and equipment
5. General Construction Materials and Equipment
6. Warranty
- 1. Materials and equipment for the elderly and health
- 2. Materials and equipment for Energy-Efficiency and Heat Insulation
- 3. Eco-Friendly Materials and Equipment
- 4. Construction technology and innovative materials and equipment
- 5. General Construction Materials and Equipment
- 6. Warranty
1. Materials and equipment for the elderly and health
| categories | materials - equipment | images |
|---|---|---|
| Air ventilation equipment | PM2.5 prevention and clean air ventilation equipment by PD Fresh Airflow model Fresh II, wall mounted in the bedrooms and bathrooms except maid room-maid bathroom (if any) |  |
| Elder room floor | Shock absorb Safety Floor – PVC type, by KRONOTEX with PVC floor skirt |       |
| House entrance ramp | Coarse polished cement, as drawing specified |   |
| Door for elder bathroom | Hung type sliding, anodized aluminum door by TOSTEM: ATIS or as manufacturer specified, 1.00 m. wide with 8 mm. frosted glass or as drawing specified. |  |
| Elder Bathroom | “AMERICAN STANDARD” or COTTO” (White color) | |
| Water closet | AMERICAN STANDARD: Cygnet Hygiene Rim 2626SC-WT-0 with toilet seat model Armorlid, 2 function rinsing spray by COTTO: CT980H#WH (HM) and stop valve model CT179N(HM) |    |
| Wash basin | Wall hung type by COTTO: For All SC00537 |  |
| Wash basin mixer faucet | COTTO: CT300A with hot water pipe and electric wiring for water heater (excluded water heater) |  |
| Wall mounted mixer faucet | AMERICAN STANDARD: SIGNATURE A-1712-300 with shower head model RAINCLICK F40017-CHADY with hot water pipe and electric wiring for water heater (excluded water heater) |   |
| Wall mounted faucet | AMERICAN STANDARD: WINSTON FFAST602-0T0500BT0 |  |
| Towel bar | AMERICAN STANDARD: ACACIA E K-1393-46N chromium color |  |
| Soap holder | AMERICAN STANDARD: ACACIA E K-1382-42N chromium color |  |
| Tissue holder | AMERICAN STANDARD: ACACIA E K-1387-55-N chromium color |  |
| Mirror | COTTO: MZ901#BS with shelf and cloth hook |  |
| Bathroom floor drain | COTTO: CT654Z2P (size 100 cm.) |  |
| Safety equipment for Elder bathroom | Foldable support arm by COTTO: CT0164 L shape handrail by COTTO: CT0162 Foldable wall mounted shower seat by COTTO: CT0169 |    |
| Swimming Pool | ||
| Wall structure | Polypropylene wall with concrete structure depth does not exceed 1.20 m. or as drawing specified. |  |
| Floor-wall system | 1.1 mm. thick, anti-slip, blue liner, no pattern. Pool edge tile with polished sandstone size 30x60 cm. |  |
| Installation equipment | Electrical system, pipe, drainage and filter system size follow the manufacturer recommendation |  |
| Pool pavement (if any) | Reinforced concrete with porcelain tile (price does not exceed 500 baht/sq.m) |  |
ประเภท
Air ventilation equipment
วัสดุ - อุปกรณ์
PM2.5 prevention and clean air ventilation equipment by PD Fresh Airflow model Fresh II, wall mounted in the bedrooms and bathrooms except maid room-maid bathroom (if any)
ประเภท

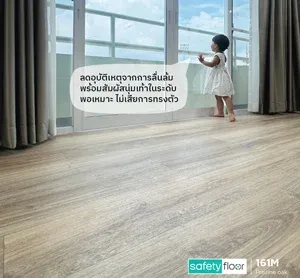

Elder room floor
วัสดุ - อุปกรณ์
Shock absorb Safety Floor – PVC type, by KRONOTEX with PVC floor skirt
ประเภท
House entrance ramp
วัสดุ - อุปกรณ์
Coarse polished cement, as drawing specified
ประเภท
Door for elder bathroom
วัสดุ - อุปกรณ์
Hung type sliding, anodized aluminum door by TOSTEM: ATIS or as manufacturer specified, 1.00 m. wide with 8 mm. frosted glass or as drawing specified.
ประเภท
Elder Bathroom
วัสดุ - อุปกรณ์
“AMERICAN STANDARD” or COTTO” (White color)
ประเภท

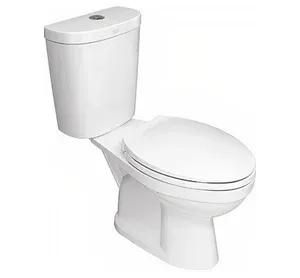

Water closet
วัสดุ - อุปกรณ์
AMERICAN STANDARD: Cygnet Hygiene Rim 2626SC-WT-0 with toilet seat model Armorlid, 2 function rinsing spray by COTTO: CT980H#WH (HM) and stop valve model CT179N(HM)
ประเภท
Wash basin
วัสดุ - อุปกรณ์
Wall hung type by COTTO: For All SC00537
ประเภท

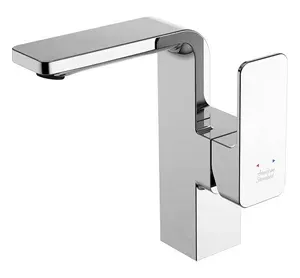

Wash basin mixer faucet
วัสดุ - อุปกรณ์
COTTO: CT300A with hot water pipe and electric wiring for water heater (excluded water heater)
ประเภท
Wall mounted mixer faucet
วัสดุ - อุปกรณ์
AMERICAN STANDARD: SIGNATURE A-1712-300 with shower head model RAINCLICK F40017-CHADY with hot water pipe and electric wiring for water heater (excluded water heater)
ประเภท
Wall mounted faucet
วัสดุ - อุปกรณ์
AMERICAN STANDARD: WINSTON FFAST602-0T0500BT0
ประเภท
Towel bar
วัสดุ - อุปกรณ์
AMERICAN STANDARD: ACACIA E K-1393-46N chromium color
ประเภท
Soap holder
วัสดุ - อุปกรณ์
AMERICAN STANDARD: ACACIA E K-1382-42N chromium color
ประเภท
Tissue holder
วัสดุ - อุปกรณ์
AMERICAN STANDARD: ACACIA E K-1387-55-N chromium color
ประเภท
Mirror
วัสดุ - อุปกรณ์
COTTO: MZ901#BS with shelf and cloth hook
ประเภท
Bathroom floor drain
วัสดุ - อุปกรณ์
COTTO: CT654Z2P (size 100 cm.)
ประเภท
Safety equipment for Elder bathroom
วัสดุ - อุปกรณ์
Foldable support arm by COTTO: CT0164
L shape handrail by COTTO: CT0162
Foldable wall mounted shower seat by COTTO: CT0169
ประเภท

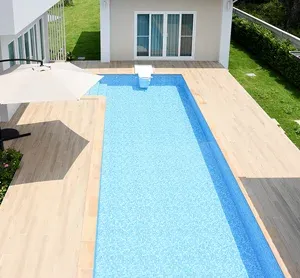

Swimming Pool
วัสดุ - อุปกรณ์
ประเภท
Wall structure
วัสดุ - อุปกรณ์
Polypropylene wall with concrete structure depth does not exceed 1.20 m. or as drawing specified.
ประเภท
Floor-wall system
วัสดุ - อุปกรณ์
1.1 mm. thick, anti-slip, blue liner, no pattern. Pool edge tile with polished sandstone size 30x60 cm.
ประเภท
Installation equipment
วัสดุ - อุปกรณ์
Electrical system, pipe, drainage and filter system size follow the manufacturer recommendation
ประเภท
Pool pavement (if any)
วัสดุ - อุปกรณ์
Reinforced concrete with porcelain tile (price does not exceed 500 baht/sq.m)
The company reserves the right to make changes to certain items as deemed appropriate. However, the total value will not be less than what is specified in the above list and does not include the following additional construction items:
- Demolition of existing buildings or other structures
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
2. Materials and equipment for Energy-Efficiency and Heat Insulation
| categories | materials - equipment | images |
|---|---|---|
| Heat prevention beneath the roof | 6 inches thick insulator by “STAY COOL”: Premium placed on ceiling beneath upper and lower roof level (except garage, upper, lower terrace area external ceiling and Insulated Roof). |   |
| Roof tile (Prestige X-shield) | “SCG” concrete roof tile model Prestige X-shield (Dark grey, Choco brown, Cloudy grey, Midnight blue) with “Dry ridge system”, stainless #24 for valley rafter. |  |
| Exterior/ interior wall material | Exterior wall - 20 (10+10) cm. thick, or as thick as the structural column thickness, Autoclave concrete with plastering and skim coat. General wall - 10 cm. thick Autoclave concrete with plastering and skim coat. |   |
| Sanitary ware (Water saving) | “AMERICAN STANDARD” or COTTO” (White color) | |
| Water Closet for master bathroom | For master bathroom and general bathroom by AMERICAN STANDARD: ACACIA EVOLUTION 2307SC-WT-0 with stainless steel rinsing spray model SMART A-4900-S |   |
ประเภท
Heat prevention beneath the roof
วัสดุ - อุปกรณ์
6 inches thick insulator by “STAY COOL”: Premium placed on ceiling beneath upper and lower roof level (except garage, upper, lower terrace area external ceiling and Insulated Roof).
ประเภท
Roof tile (Prestige X-shield)
วัสดุ - อุปกรณ์
“SCG” concrete roof tile model Prestige X-shield (Dark grey, Choco brown, Cloudy grey, Midnight blue) with “Dry ridge system”, stainless #24 for valley rafter.
ประเภท
Exterior/ interior wall material
วัสดุ - อุปกรณ์
Exterior wall - 20 (10+10) cm. thick, or as thick as the structural column thickness, Autoclave concrete with plastering and skim coat.
General wall - 10 cm. thick Autoclave concrete with plastering and skim coat.
ประเภท
Sanitary ware (Water saving)
วัสดุ - อุปกรณ์
“AMERICAN STANDARD” or COTTO” (White color)
ประเภท
Water Closet for master bathroom
วัสดุ - อุปกรณ์
For master bathroom and general bathroom by AMERICAN STANDARD: ACACIA EVOLUTION 2307SC-WT-0 with stainless steel rinsing spray model SMART A-4900-S
The company reserves the right to make changes to certain items as deemed appropriate. However, the total value will not be less than what is specified in the above list and does not include the following additional construction items:
- Demolition of existing buildings or other structures
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
3. Eco-Friendly Materials and Equipment
| categories | materials - equipment | images |
|---|---|---|
| General first floor and upper floor materials | 12 mm. thick laminated floor by “INOVAR”: Exquizite with PVC floor skirt |   |
| Wooden stair set | A set of Engineered Wood by ACON or MUKU color coated from the factory | |
| Stair tread | Size 300x30 mm. | |
| Riser | Size 200x20 mm. |  |
| Baluster | Size 50x50 mm. |  |
| Landing | 30 mm. thick, 2 pieces (V groove connect) |  |
| Post | Size 125x125 mm. | |
| Handrail | Wrought Iron as drawing specified topped with Engineered wood size 50x100 mm. |  |
| Exterior ceiling (Balcony/Garage/Eaves) | Wood Plastic Composite (WPC) by PD WOOD by Maxis Wood model QB-003 Teak color or equal with Zinc galvanized studs#26 and insect prevention screen. |   |
| Decorated wall (If any) | In case of fiber cement decorated wall, use “SCG” or “CONWOOD” or Wood Plastic Composite (WPC) - PD WOOD by Maxis Wood model CX-002 teak color or as drawing specified |  |
| Interior Doors | ||
| General interior door/ Bedroom/ Storage room (if any) | Wood Plastic Composite (WPC) door with steel structure by “PD WOOD” model C1-WPC-001-006 color New Pine, Burma teak or Vintage wenge (choose later). |  |
| More Details | And white wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD”. | |
| Door for maid room and maid bathroom | White Wood Plastic Composite (WPC) door model C-WPC-001-003, 008, 011, 012 and white wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD” |   |
| Door for kitchen/ open to garage/ maid room/ maid bathroom (open to exterior) | White Wood Plastic Composite (WPC) door with steel structure by “PD WOOD” model C1-WPC-008, 011, 012. White wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD”. |  |
| Facia | Fiber - cement board by “SCG”: 6”, 8” primer paint coated type or Synthetic wood “Eave Plus” or equal |   |
| Treatment Tank | Fiberglass tank by “DOS” model ST-21/GY or “PP”: Ecotank or equal (put underground). |   |
| Grease trap Tank | Fiberglass tank by “DOS”: GT-09/BK-40 or “PP”: GT-30UG (put underground). |   |
ประเภท
General first floor and upper floor materials
วัสดุ - อุปกรณ์
12 mm. thick laminated floor by “INOVAR”: Exquizite with PVC floor skirt
ประเภท
Wooden stair set
วัสดุ - อุปกรณ์
A set of Engineered Wood by ACON or MUKU color coated from the factory
ประเภท
Stair tread
วัสดุ - อุปกรณ์
Size 300x30 mm.
ประเภท
Riser
วัสดุ - อุปกรณ์
Size 200x20 mm.
ประเภท
Baluster
วัสดุ - อุปกรณ์
Size 50x50 mm.
ประเภท
Landing
วัสดุ - อุปกรณ์
30 mm. thick, 2 pieces (V groove connect)
ประเภท
Post
วัสดุ - อุปกรณ์
Size 125x125 mm.
ประเภท
Handrail
วัสดุ - อุปกรณ์
Wrought Iron as drawing specified topped with Engineered wood size 50x100 mm.
ประเภท
Exterior ceiling (Balcony/Garage/Eaves)
วัสดุ - อุปกรณ์
Wood Plastic Composite (WPC) by PD WOOD by Maxis Wood model QB-003 Teak color or equal with Zinc galvanized studs#26 and insect prevention screen.
ประเภท
Decorated wall (If any)
วัสดุ - อุปกรณ์
In case of fiber cement decorated wall, use “SCG” or “CONWOOD” or Wood Plastic Composite (WPC) - PD WOOD by Maxis Wood model CX-002 teak color or as drawing specified
ประเภท
Interior Doors
วัสดุ - อุปกรณ์
ประเภท
General interior door/ Bedroom/ Storage room (if any)
วัสดุ - อุปกรณ์
Wood Plastic Composite (WPC) door with steel structure by “PD WOOD” model C1-WPC-001-006 color New Pine, Burma teak or Vintage wenge (choose later).
ประเภท
More Details
วัสดุ - อุปกรณ์
And white wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD”.
ประเภท
Door for maid room and maid bathroom
วัสดุ - อุปกรณ์
White Wood Plastic Composite (WPC) door model C-WPC-001-003, 008, 011, 012 and white wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD”
ประเภท
Door for kitchen/ open to garage/ maid room/ maid bathroom (open to exterior)
วัสดุ - อุปกรณ์
White Wood Plastic Composite (WPC) door with steel structure by “PD WOOD” model C1-WPC-008, 011, 012. White wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD”.
ประเภท
Facia
วัสดุ - อุปกรณ์
Fiber - cement board by “SCG”: 6”, 8” primer paint coated type or Synthetic wood “Eave Plus” or equal
ประเภท
Treatment Tank
วัสดุ - อุปกรณ์
Fiberglass tank by “DOS” model ST-21/GY or “PP”: Ecotank or equal (put underground).
ประเภท
Grease trap Tank
วัสดุ - อุปกรณ์
Fiberglass tank by “DOS”: GT-09/BK-40 or “PP”: GT-30UG (put underground).
The company reserves the right to make changes to certain items as deemed appropriate. However, the total value will not be less than what is specified in the above list and does not include the following additional construction items:
- Demolition of existing buildings or other structures
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
4. Construction technology and innovative materials and equipment
| categories | materials - equipment | images |
|---|---|---|
| Concrete Structure | ||
| Footing/Column /Beam/ Staircase/ Bathroom tray | Prefabrication structure with Multi Joint Lock System. Some parts of structure are cast-in-place as engineer specified. |   |
| General concrete plank | Prestressed planks by D-CON or PCM or equal. Some parts of structure are cast-in-place as engineer specified. |   |
| Exterior Door/Window | by TOSTEM | |
| General Window | Anodized aluminum window by “TOSTEM”: ATIS or as manufacturer specific with 8 mm. thick clear green glass. |    |
| Bathroom window | Anodized aluminum window by “TOSTEM”: ATIS or as manufacturer specific with 8 mm. thick frosted glass. |  |
| Door for storage room under stair (if any) / Door for electric control unit panel | Aluminum door by “TOSTEM”: ATIS or as manufacturer specific |  |
| Plastering Material | Mortar cement by “SCG”, “INSEE”, “TPI”, “SINGHA MORTAR” or equal with skim coat. For exterior wall, protective formula mortar “PD Mortar Plus”+ Fiberglass mesh is used. |  |
| Roof Truss | Alu-zinc (AZ-150) or SuperDyma coated high strength steel structure with screw and nut system as engineer specified. |   |
| Handrail | Wrought Iron, tempered glass or as drawing specified |  |
| Hot water pipe | Pimaflex Multipipe by PIMATEC, size 16x2.0 mm. (12 mm.) |   |
ประเภท
Concrete Structure
วัสดุ - อุปกรณ์
ประเภท
Footing/Column /Beam/ Staircase/ Bathroom tray
วัสดุ - อุปกรณ์
Prefabrication structure with Multi Joint Lock System. Some parts of structure are cast-in-place as engineer specified.
ประเภท
General concrete plank
วัสดุ - อุปกรณ์
Prestressed planks by D-CON or PCM or equal. Some parts of structure are cast-in-place as engineer specified.
ประเภท
Exterior Door/Window
วัสดุ - อุปกรณ์
by TOSTEM
ประเภท
General Window
วัสดุ - อุปกรณ์
Anodized aluminum window by “TOSTEM”: ATIS or as manufacturer specific with 8 mm. thick clear green glass.
ประเภท
Bathroom window
วัสดุ - อุปกรณ์
Anodized aluminum window by “TOSTEM”: ATIS or as manufacturer specific with 8 mm. thick frosted glass.
ประเภท
Door for storage room under stair (if any) / Door for electric control unit panel
วัสดุ - อุปกรณ์
Aluminum door by “TOSTEM”: ATIS or as manufacturer specific
ประเภท
Plastering Material
วัสดุ - อุปกรณ์
Mortar cement by “SCG”, “INSEE”, “TPI”, “SINGHA MORTAR” or equal with skim coat. For exterior wall, protective formula mortar “PD Mortar Plus”+ Fiberglass mesh is used.
ประเภท
Roof Truss
วัสดุ - อุปกรณ์
Alu-zinc (AZ-150) or SuperDyma coated high strength steel structure with screw and nut system as engineer specified.
ประเภท
Handrail
วัสดุ - อุปกรณ์
Wrought Iron, tempered glass or as drawing specified
ประเภท
Hot water pipe
วัสดุ - อุปกรณ์
Pimaflex Multipipe by PIMATEC, size 16x2.0 mm. (12 mm.)
The company reserves the right to make changes to certain items as deemed appropriate. However, the total value will not be less than what is specified in the above list and does not include the following additional construction items:
- Demolition of existing buildings or other structures
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
5. General Construction Materials and Equipment
| categories | materials - equipment | images |
|---|---|---|
| Piling for Bangkok area and surrounding area | Pre-stressed concrete pile I-26 not exceed 21.00 m. long (2 piles welded connection) In case driven pile cannot be used, bored pile as engineer specified is used (extra cost) |   |
| Pilling of Provincial area (stiff soil) | Pre-stressed concrete solid square pile 26 x 26 cm is used. One storey house, the length does not exceed 10.00 m. 2-3 storey house, the length does not exceed 12.00 m. | |
| More Details | In the area where pile can not be driven, soil bearing foundation as engineer specified is used. | |
| Floor of washing area | Reinforced concrete slab on ground as engineer specified. Piling work size I-12, 2.00 m. long every 0.80 m. interval (except stiff soil where pile cannot be driven) |  |
| Entrance pavement | Reinforced concrete slab on ground with 0.12 m. thickness or as engineer specified. Total area not exceed 40 sq.m. |  |
| Concrete | Ready mixed concrete by SCG, INSEE, TPI |  |
| Floor Level | ||
| First floor level | 0.80 m. high from the ground or as specified in the drawing (In case of multilevel floor). |  |
| Second floor level | 3.80 m. approximately high from the first-floor level or as specified in the drawing |  |
| Flooring Materials | ||
| Master bathroom floor | Porcelain tile (price does not exceed 1,000 bath/sq.m.) |  |
| General bathroom floor | Porcelain tile (price does not exceed 500 bath/sq.m.) |  |
| Elder bathroom floor | Porcelain tile (price does not exceed 500 bath/sq.m.) |  |
| Maid bathroom floor | Porcelain tile (price does not exceed 300 bath/sq.m.) |   |
| Kitchen floor/ Laundry floor (if any) | Porcelain tile (price does not exceed 500 bath/sq.m.) with PVC floor skirt or equal |     |
| Maid room floor/ storage room floor | Porcelain tile (price does not exceed 300 bath/sq.m.) with PVC floor skirt or equal |   |
| Main entrance terrace | Porcelain tile (price does not exceed 1,000 bath/sq.m.) with aluminum stair nose |  |
| General terrace floor | Porcelain tile (price does not exceed 500 bath/sq.m.) with aluminum stair nose |  |
| Waterproofing system for terrace/balcony/toilet floor | the paint type waterproofing system, TOA Cement Waterproof with fiberglass mesh or equal will be applied. |   |
| Parking floor / Entrance | Ceramic tile by “Bezen”: Rome Street Nano size 4”x4” |     |
| Footpath | Ceramic tile by “Bezen”: Rome Street Classic size 4”x4” |  |
| Washing area | Porcelain tile (price does not exceed 300 bath/sq.m.) with aluminum stair nose (If any) | |
| Wall Decoration Materials | ||
| Master bathroom wall | Porcelain tile (price does not exceed 1,000 bath/sq.m.) height does not exceed 2.80 m. with stainless steel or aluminum tile trim or 45-degree mitered tile corners |  |
| General bathroom wall | Porcelain tile (price does not exceed 500 bath/sq.m.) height does not exceed 2.80 m. with stainless steel or aluminum tile trim or 45-degree mitered tile corners |  |
| Elder bathroom wall | Porcelain tile (price does not exceed 500 bath/sq.m.) height does not exceed 2.80 m. with stainless steel or aluminum tile trim or 45-degree mitered tile corners |  |
| Maid bathroom wall | Porcelain tile (price does not exceed 300 bath/sq.m.) height does not exceed 2.40 m. with PVC tile trim |    |
| Decorated wall (If any) | Natural color granite “BEZEN” or “KENZAI” (price does not exceed 1,000 baht/sq.m.) or equal, spaced grooves |   |
| Ceiling | ||
| General interior ceiling | Height not exceed 3.00 m. Beveled edge gypsum board 9 mm. thick by “SCG” with galvanized metal studs#26. 2 set of 60x60 cm. instant service access on the second-floor ceiling. |  |
| Maid room/ Storage room ceiling | Beveled edge gypsum board 9 mm. thick by “SCG” with galvanized metal studs#26 | |
| Ceiling for bathroom | Beveled edge gypsum board, moisture resistant type, 9 mm. thick by “SCG” with galvanized metal studs #26 |  |
| Roof tile | Concrete roof tile model Adamas Tile, chalet shake or smooth tile model with Metallic color (Shining sapphire, Shining emerald) or Platinum color (Sunny red, Brightly brown) |   |
| the color chosen later with “Dry ridge system”, stainless #24 for valley rafter. In case of polished concrete roof, the paint type waterproofing system, TOA PU Waterproof with fiberglass mesh or equal will be applied. | ||
| Door and window accessories | ||
| Handle / Lock set for general interior doors/ kitchen door/ garage door | Stainless steel mortise lock set by “HAFELE”: 902.92.044 with dead lock key model 911.02.153 or equal with stainless steel door stopper |  |
| Maid room door | Stainless steel mortise lock set by “MATURE”: MTL-001-C or equal with stainless steel door stopper model MDH-006 or equal. |  |
| Maid bathroom door | Stainless steel knob by “MATURE”: MK-012-B SS (eco) or equal with stainless steel door stopper model MDH-006 or equal. |  |
| Hinge for general doors/ Maid bathroom door | Stainless steel butterfly hinge by “HAFELE”:926.96.100 or equal, 4 pieces/door |  |
| Bathroom door | Hinge and lockset by “TOSTEM” or equal |   |
| Hung type sliding door (if any) | by “TOSTEM” or equal |   |
| SANTARY WARE | “AMERICAN STANDARD” or COTTO” (White color) or equal (as specified by company) | |
| Water closet | Master bathroom by AMERICAN STANDARD: PLAT Smart Toilet Music & Auto Seat 2021-WT-9 with 2 function rinsing spray model DuoSTiX A-4800CH-WT chromium color. |   |
| More Details | Maid bathroom by AMERICAN STANDARD: NEW WINSPLUS 2698SCW-WT-0 with rinsing spray model A-4800-WT, white color. |   |
| Urinal | AMERICAN STANDARD: New Contour 6727N-WT-0 (in 1 bathroom downstairs) |  |
| Bathtub | For Master bathroom only, AMERICAN STANDARD: PLAZA-s 70020-WT with wall mount mixer faucet and shower set model SIGNATURE A-1712-300 with hot water pipe and electric wiring for water heater (excluded water heater) |   |
| Wash basin | For master bathroom, AMERICAN STANDARD: FECILITY DOUBLE WP-F521H-WT, over the counter type. |    |
| More Details | For general bathroom AMERICAN STANDARD: ACACIA SUPASLEEK WP-F420-WT, over the counter type For maid bathroom, AMERICAN STANDARD: LOVEN 0262-WT-0, wall hung type | |
| Wash basin mixer faucet | For master bathroom, AMERICAN STANDARD: ACACIA EVOLUTION A-1305-100. For general bathroom AMERICAN STANDARD: ACACIA EVOLUTION A-1301-100 |   |
| Wash basin faucet | For master bathroom and general bathroom, AMERICAN STANDARD: ACACIA EVOLUTION A-1306-10 For maid bathroom AMERICAN STANDARD: ARC A-J55-10 |  ACACIA EVOLUTION A-1306-10  ARC A-J55-10 |
| Bathroom counter | For general bathroom counter topped with African black color granite stone, counter edge topped with porcelain tile same as the wall. | |
| Wall mounted faucet for shower (For master bathroom) | For master bathroom, AMERICAN STANDARD: ACACIA EVOLUTION MONO A-1326-10 with rain shower set model MOONSHADOW H20S A-6110-978-906 |  ACACIA EVOLUTION MONO A-1326-10 |
| Wall mounted faucet for shower (For general bathroom) | For general bathroom, AMERICAN STANDARD: LOVEN A-1M26-10 with shower head set model RAINCLICK F40017-CHADY |  LOVEN A-1M26-10 |
| Wall mounted faucet for shower (For maid bathroom) | For maid bathroom AMERICAN STANDARD: WINSTON FFAST604-7T1500BT0 |  |

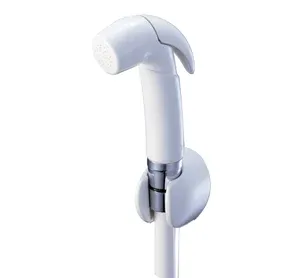

| Wall mounted faucet | For master bathroom, general bathroom and maid bathroom AMERICAN STANDARD: WINSTON FFAST602-0T0500BT0 (1 for each bathroom) |  |
| Towel bar | For master bathroom and general bathroom AMERICAN STANDARD: ACACIA EVOLUTION K-1393-46-N For maid bathroom AMERICAN STANDARD: CONCEPT ROUND K-2801-46-N |   |
| Soap holder | For master bathroom and general bathroom AMERICAN STANDARD: ACACIA EVOLUTION K-1382-42-N For maid bathroom RASLAND: RA-BENZ-9894 |   |
| Tissue holder | For maid bathroom AMERICAN STANDARD: ACACIA EVOLUTION K-1387-55-N chromium color For maid bathroom RASLAND: RA-822626 |   |
| Shelf | For maid bathroom RASLAND: RA-B30044 |  |
| Mirror | For master bathroom and general bathroom AMERICAN STANDARD: GRACE LQ-04 For maid bathroom COTTO: MM006 |   |
| Bathroom floor drain | For master bathroom and general bathroom, odor trap chrome plated brass floor drain by AMERICAN STANDARD: A-8204-N, 2 for each bathroom |  |

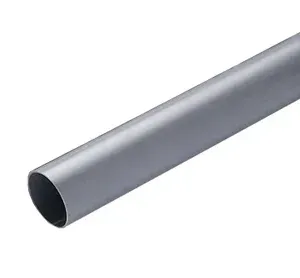

| WATER | WATER PVC pipes by SCG or THAI PIPE | |
| Clear water pipe | ¾” dia. PVC pipe (class 13.5) for exterior and interior main pipe from building to meter, length not exceed 40.00 m. with ball valve, metal hand, separating for each floor. ½” dia. PVC (class 13.5) for branch pipe. | |
| Waste water/ Drain | 4” dia. PVC pipe (class 8.5) for sewage pipe. 2” dia. PVC (class 8.5) for drainage pipe and 3” dia. for main pipe (class 8.5) |  |
| Ventilation pipe | 1" dia. PVC pipe (class 5.0) |  |
| Rain-water drainage | 2” dia. PVC pipe for branch rainwater pipe and 3” dia. for main water pipe (class 8.5). 2” Skull shape stainless steel floor drain for balcony or concrete slap roof. |  |
| SANITARY SYSTEM | ||
| Drainage pipe | Asbestos cement pipe dia. 8" to public drain (Not exceed 40.00 m. long from the house). |  |
| Manhole | 30x40 cm. precast manhole every 6.00 m. interval and every bends or corners. |  |
| ELECTRICITY SYSTEM | Electric cables and equipment comply with the Standard of Metropolitan Electricity or Provincial Electricity Authority. Electricity cable by THAI YASAKI or equal. | |
| Main income wiring | PVC insulated single copper wiring (KV-CV#50 sq.mm.) The length from wall to meter not exceed 40.00 m (put in PE conduit dia. 2” underground). |  |
| Main income telephone wiring | Four cores wiring not exceed 40.00 m. from meter to the house put in PE conduit ½” underground. | |
| Internal wiring | Single copper wiring with PVC insulated with yellow PVC conduit in wall or on ceiling. |  |
| Air condition wiring | Maximum 6 points wiring | |

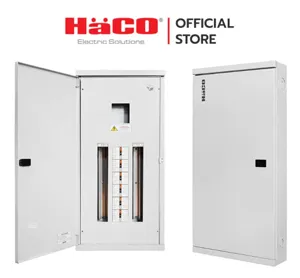

| Control panel | 32 Amps. 36 circuit breaker by “HACO”: HLC-100/36 with main breaker model HM3-100S32 or equal with Residual Current Device (RCBO). |  |
| Lighting switch | Flat wall mounted lighting switch by “HACO” switch cover Qx W1931 / W1932, 1 way switch model W2711 (ST-MSB-SBL-STP) install 2 switches for 1 room, 3 switches for master bedroom, 1 switch for kitchen, maid room, storage room, bathroom, laundry. |  |
| 2-way switch model W2711 (ST-MSB-SBL-STP) only at stair hall. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP) | ||
| Receptacle | Flat wall mounted receptacle by “HACO” 3 slots cover model Qx W1933 and 3 pin receptable model W8416V2 (ST-MSB-SBL-STP) |   |
| install 3 for master bedroom, living room and kitchen, 2 outlets for general bedroom, 1 for bathroom, laundry, upper hall (except storage room). Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP) | ||
| Exterior receptacle | 2 sets of flat wall mounted receptacle by “HACO” 3 slots cover model Qx W1933 and 3 pin receptable model W8416V2 (ST-MSB-SBL-STP) with soft rubber waterproof case model IPW553-WH / IPW553-ST. Select 1 color from White, Matt Black (ST) | |
| Telephone outlet | 2 sets of flat wall mounted telephone outlet by “HACO” cover model Qx W1931 (ST-MSB-SBL-STP) and 6 core telephone outlet RJ12 model PR-P024 W8201TU. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP) |   |
| T.V. outlet | 2 sets of Flat wall mounted T.V. outlet by “HACO” cover model Qx W1931 (ST-MSB-SBL-STP) and 75 ohm T.V. outlet model W8201TV. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP) |  |
| LAN outlet | 5 sets of Flat wall mounted LAN outlet by “HACO” cover model Qx W1931 (ST-MSB-SBL-STP) and CAT6 LAN outlet model W8211PC. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP) |  |
| Emergency light | 2 sets of twin LED lamp head emergency light at stair hall or as drawing specified. |  |
| Luminaire | Total budget not over 50,000 Baht |   |
| ELECTRICITY AND WATER METER | ||
| Permanent electric meter | 30 Amps 3 phases meter. Fee and meter deposit covered by company. (Exclude the service area extension fee) |  |
| Permanent water meter | 3/4" Diameter meter, Fee and meter deposit covered by company. (Exclude the service area extension fee) |  |
| PAINTING | BY TOA | |
| External wall | External acrylic paint "TOA": Supershield or equal,1 primer and 2 final coated |   |
| Internal wall | Internal acrylic paint "TOA": Supershield Duraclean A+ or equal,1 primer and 2 final coated |   |
| Steel surface/HDF panel | Emulsion paint "TOA": Glipton or equal 1 primer and 2 final coated |   |
| Facia/Fiber Cement Board | External acrylic paint "TOA": Supershield or equal,1 primer and 2 final coated | |
| OTHER WORK | ||
| Termite protection system | “BYER”: Agenda termite chemical or equal spray on ground and 1 meter around the building. Springer system and PVC tube piping for termite protection chemical is installed beneath the first floor structure for termite protection chemical. |   |
| Tile adhesive | Glue cement by SCG, WEBER, CROCODILE or equal |    |
ประเภท
Piling for Bangkok area and surrounding area
วัสดุ - อุปกรณ์
Pre-stressed concrete pile I-26 not exceed 21.00 m. long (2 piles welded connection)
In case driven pile cannot be used, bored pile as engineer specified is used (extra cost)
ประเภท
Pilling of Provincial area (stiff soil)
วัสดุ - อุปกรณ์
Pre-stressed concrete solid square pile 26 x 26 cm is used.
One storey house, the length does not exceed 10.00 m.
2-3 storey house, the length does not exceed 12.00 m.
ประเภท
More Details
วัสดุ - อุปกรณ์
In the area where pile can not be driven, soil bearing foundation as engineer specified is used.
ประเภท
Floor of washing area
วัสดุ - อุปกรณ์
Reinforced concrete slab on ground as engineer specified. Piling work size I-12, 2.00 m. long every 0.80 m. interval (except stiff soil where pile cannot be driven)
ประเภท
Entrance pavement
วัสดุ - อุปกรณ์
Reinforced concrete slab on ground with 0.12 m. thickness or as engineer specified. Total area not exceed 40 sq.m.
ประเภท
Concrete
วัสดุ - อุปกรณ์
Ready mixed concrete by SCG, INSEE, TPI
ประเภท
Floor Level
วัสดุ - อุปกรณ์
ประเภท
First floor level
วัสดุ - อุปกรณ์
0.80 m. high from the ground or as specified in the drawing (In case of multilevel floor).
ประเภท
Second floor level
วัสดุ - อุปกรณ์
3.80 m. approximately high from the first-floor level or as specified in the drawing
ประเภท
Flooring Materials
วัสดุ - อุปกรณ์
ประเภท
Master bathroom floor
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 1,000 bath/sq.m.)
ประเภท
General bathroom floor
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 500 bath/sq.m.)
ประเภท
Elder bathroom floor
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 500 bath/sq.m.)
ประเภท
Maid bathroom floor
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 300 bath/sq.m.)
ประเภท
Kitchen floor/ Laundry floor (if any)
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 500 bath/sq.m.) with PVC floor skirt or equal
ประเภท
Maid room floor/ storage room floor
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 300 bath/sq.m.) with PVC floor skirt or equal
ประเภท
Main entrance terrace
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 1,000 bath/sq.m.) with aluminum stair nose
ประเภท
General terrace floor
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 500 bath/sq.m.) with aluminum stair nose
ประเภท
Waterproofing system for terrace/balcony/toilet floor
วัสดุ - อุปกรณ์
the paint type waterproofing system, TOA Cement Waterproof with fiberglass mesh or equal will be applied.
ประเภท
Parking floor / Entrance
วัสดุ - อุปกรณ์
Ceramic tile by “Bezen”: Rome Street Nano size 4”x4”
ประเภท
Footpath
วัสดุ - อุปกรณ์
Ceramic tile by “Bezen”: Rome Street Classic size 4”x4”
ประเภท
Washing area
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 300 bath/sq.m.) with aluminum stair nose (If any)
ประเภท
Wall Decoration Materials
วัสดุ - อุปกรณ์
ประเภท
Master bathroom wall
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 1,000 bath/sq.m.) height does not exceed 2.80 m. with stainless steel or aluminum tile trim or 45-degree mitered tile corners
ประเภท
General bathroom wall
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 500 bath/sq.m.) height does not exceed 2.80 m. with stainless steel or aluminum tile trim or 45-degree mitered tile corners
ประเภท
Elder bathroom wall
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 500 bath/sq.m.) height does not exceed 2.80 m. with stainless steel or aluminum tile trim or 45-degree mitered tile corners
ประเภท
Maid bathroom wall
วัสดุ - อุปกรณ์
Porcelain tile (price does not exceed 300 bath/sq.m.) height does not exceed 2.40 m. with PVC tile trim
ประเภท
Decorated wall (If any)
วัสดุ - อุปกรณ์
Natural color granite “BEZEN” or “KENZAI” (price does not exceed 1,000 baht/sq.m.) or equal, spaced grooves
ประเภท
Ceiling
วัสดุ - อุปกรณ์
ประเภท
General interior ceiling
วัสดุ - อุปกรณ์
Height not exceed 3.00 m. Beveled edge gypsum board 9 mm. thick by “SCG” with galvanized metal studs#26. 2 set of 60x60 cm. instant service access on the second-floor ceiling.
ประเภท
Maid room/ Storage room ceiling
วัสดุ - อุปกรณ์
Beveled edge gypsum board 9 mm. thick by “SCG” with galvanized metal studs#26
ประเภท
Ceiling for bathroom
วัสดุ - อุปกรณ์
Beveled edge gypsum board, moisture resistant type, 9 mm. thick by “SCG” with galvanized metal studs #26
ประเภท
Roof tile
วัสดุ - อุปกรณ์
Concrete roof tile model Adamas Tile, chalet shake or smooth tile model with Metallic color (Shining sapphire, Shining emerald) or Platinum color (Sunny red, Brightly brown)
ประเภท
วัสดุ - อุปกรณ์
the color chosen later with “Dry ridge system”, stainless #24 for valley rafter.
In case of polished concrete roof, the paint type waterproofing system, TOA PU Waterproof with fiberglass mesh or equal will be applied.
ประเภท
Door and window accessories
วัสดุ - อุปกรณ์
ประเภท
Handle / Lock set for general interior doors/ kitchen door/ garage door
วัสดุ - อุปกรณ์
Stainless steel mortise lock set by “HAFELE”: 902.92.044 with dead lock key model 911.02.153 or equal with stainless steel door stopper
ประเภท
Maid room door
วัสดุ - อุปกรณ์
Stainless steel mortise lock set by “MATURE”: MTL-001-C or equal with stainless steel door stopper model MDH-006 or equal.
ประเภท
Maid bathroom door
วัสดุ - อุปกรณ์
Stainless steel knob by “MATURE”: MK-012-B SS (eco) or equal with stainless steel door stopper model MDH-006 or equal.
ประเภท
Hinge for general doors/ Maid bathroom door
วัสดุ - อุปกรณ์
Stainless steel butterfly hinge by “HAFELE”:926.96.100 or equal, 4 pieces/door
ประเภท
Bathroom door
วัสดุ - อุปกรณ์
Hinge and lockset by “TOSTEM” or equal
ประเภท
Hung type sliding door (if any)
วัสดุ - อุปกรณ์
by “TOSTEM” or equal
ประเภท
SANTARY WARE
วัสดุ - อุปกรณ์
“AMERICAN STANDARD” or COTTO” (White color) or equal (as specified by company)
ประเภท
Water closet
วัสดุ - อุปกรณ์
Master bathroom by AMERICAN STANDARD: PLAT Smart Toilet Music & Auto Seat 2021-WT-9 with 2 function rinsing spray model DuoSTiX A-4800CH-WT chromium color.
ประเภท
More Details
วัสดุ - อุปกรณ์
Maid bathroom by AMERICAN STANDARD: NEW WINSPLUS 2698SCW-WT-0 with rinsing spray model A-4800-WT, white color.
ประเภท
Urinal
วัสดุ - อุปกรณ์
AMERICAN STANDARD: New Contour 6727N-WT-0 (in 1 bathroom downstairs)
ประเภท
Bathtub
วัสดุ - อุปกรณ์
For Master bathroom only, AMERICAN STANDARD: PLAZA-s 70020-WT with wall mount mixer faucet and shower set model SIGNATURE A-1712-300 with hot water pipe and electric wiring for water heater (excluded water heater)
ประเภท
Wash basin
วัสดุ - อุปกรณ์
For master bathroom, AMERICAN STANDARD: FECILITY DOUBLE WP-F521H-WT, over the counter type.
ประเภท
More Details
วัสดุ - อุปกรณ์
For general bathroom AMERICAN STANDARD: ACACIA SUPASLEEK WP-F420-WT, over the counter type For maid bathroom, AMERICAN STANDARD: LOVEN 0262-WT-0, wall hung type
ประเภท
Wash basin mixer faucet
วัสดุ - อุปกรณ์
For master bathroom, AMERICAN STANDARD: ACACIA EVOLUTION A-1305-100. For general bathroom AMERICAN STANDARD: ACACIA EVOLUTION A-1301-100
ประเภท
Wash basin faucet
วัสดุ - อุปกรณ์
For master bathroom and general bathroom, AMERICAN STANDARD: ACACIA EVOLUTION A-1306-10
For maid bathroom AMERICAN STANDARD: ARC A-J55-10
ประเภท
Bathroom counter
วัสดุ - อุปกรณ์
For general bathroom counter topped with African black color granite stone, counter edge topped with porcelain tile same as the wall.
ประเภท
Wall mounted faucet for shower (For master bathroom)
วัสดุ - อุปกรณ์
For master bathroom, AMERICAN STANDARD: ACACIA EVOLUTION MONO A-1326-10 with rain shower set model MOONSHADOW H20S A-6110-978-906
ประเภท
Wall mounted faucet for shower (For general bathroom)
วัสดุ - อุปกรณ์
For general bathroom, AMERICAN STANDARD: LOVEN A-1M26-10 with shower head set model RAINCLICK F40017-CHADY
ประเภท
Wall mounted faucet for shower (For maid bathroom)
วัสดุ - อุปกรณ์
For maid bathroom AMERICAN STANDARD: WINSTON FFAST604-7T1500BT0
ประเภท
Wall mounted faucet
วัสดุ - อุปกรณ์
For master bathroom, general bathroom and maid bathroom AMERICAN STANDARD: WINSTON FFAST602-0T0500BT0 (1 for each bathroom)
ประเภท
Towel bar
วัสดุ - อุปกรณ์
For master bathroom and general bathroom AMERICAN STANDARD: ACACIA EVOLUTION K-1393-46-N
For maid bathroom AMERICAN STANDARD: CONCEPT ROUND K-2801-46-N
ประเภท
Soap holder
วัสดุ - อุปกรณ์
For master bathroom and general bathroom AMERICAN STANDARD: ACACIA EVOLUTION K-1382-42-N
For maid bathroom RASLAND: RA-BENZ-9894
ประเภท
Tissue holder
วัสดุ - อุปกรณ์
For maid bathroom AMERICAN STANDARD: ACACIA EVOLUTION K-1387-55-N chromium color
For maid bathroom RASLAND: RA-822626
ประเภท
Shelf
วัสดุ - อุปกรณ์
For maid bathroom RASLAND: RA-B30044
ประเภท
Mirror
วัสดุ - อุปกรณ์
For master bathroom and general bathroom AMERICAN STANDARD: GRACE LQ-04
For maid bathroom COTTO: MM006
ประเภท
Bathroom floor drain
วัสดุ - อุปกรณ์
For master bathroom and general bathroom, odor trap chrome plated brass floor drain by
AMERICAN STANDARD: A-8204-N, 2 for each bathroom
ประเภท
WATER
วัสดุ - อุปกรณ์
WATER PVC pipes by SCG or THAI PIPE
ประเภท
Clear water pipe
วัสดุ - อุปกรณ์
¾” dia. PVC pipe (class 13.5) for exterior and interior main pipe from building to meter, length not exceed 40.00 m. with ball valve, metal hand, separating for each floor. ½” dia. PVC (class 13.5) for branch pipe.
ประเภท
Waste water/ Drain
วัสดุ - อุปกรณ์
4” dia. PVC pipe (class 8.5) for sewage pipe. 2” dia. PVC (class 8.5) for drainage pipe and 3” dia. for main pipe (class 8.5)
ประเภท
Ventilation pipe
วัสดุ - อุปกรณ์
1" dia. PVC pipe (class 5.0)
ประเภท
Rain-water drainage
วัสดุ - อุปกรณ์
2” dia. PVC pipe for branch rainwater pipe and 3” dia. for main water pipe (class 8.5). 2” Skull shape stainless steel floor drain for balcony or concrete slap roof.
ประเภท
SANITARY SYSTEM
วัสดุ - อุปกรณ์
ประเภท
Drainage pipe
วัสดุ - อุปกรณ์
Asbestos cement pipe dia. 8" to public drain (Not exceed 40.00 m. long from the house).
ประเภท
Manhole
วัสดุ - อุปกรณ์
30x40 cm. precast manhole every 6.00 m. interval and every bends or corners.
ประเภท
ELECTRICITY SYSTEM
วัสดุ - อุปกรณ์
Electric cables and equipment comply with the Standard of Metropolitan Electricity or Provincial Electricity Authority. Electricity cable by THAI YASAKI or equal.
ประเภท
Main income wiring
วัสดุ - อุปกรณ์
PVC insulated single copper wiring (KV-CV#50 sq.mm.) The length from wall to meter not exceed 40.00 m (put in PE conduit dia. 2” underground).
ประเภท
Main income telephone wiring
วัสดุ - อุปกรณ์
Four cores wiring not exceed 40.00 m. from meter to the house put in PE conduit ½” underground.
ประเภท
Internal wiring
วัสดุ - อุปกรณ์
Single copper wiring with PVC insulated with yellow PVC conduit in wall or on ceiling.
ประเภท
Air condition wiring
วัสดุ - อุปกรณ์
Maximum 6 points wiring
ประเภท
Control panel
วัสดุ - อุปกรณ์
32 Amps. 36 circuit breaker by “HACO”: HLC-100/36 with main breaker model HM3-100S32 or equal with Residual Current Device (RCBO).
ประเภท
Lighting switch
วัสดุ - อุปกรณ์
Flat wall mounted lighting switch by “HACO” switch cover Qx W1931 / W1932, 1 way switch model W2711 (ST-MSB-SBL-STP) install 2 switches for 1 room, 3 switches for master bedroom, 1 switch for kitchen, maid room, storage room, bathroom, laundry.
ประเภท
วัสดุ - อุปกรณ์
2-way switch model W2711 (ST-MSB-SBL-STP) only at stair hall. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP)
ประเภท
Receptacle
วัสดุ - อุปกรณ์
Flat wall mounted receptacle by “HACO” 3 slots cover model Qx W1933 and 3 pin receptable model W8416V2 (ST-MSB-SBL-STP)
ประเภท
วัสดุ - อุปกรณ์
install 3 for master bedroom, living room and kitchen, 2 outlets for general bedroom, 1 for bathroom, laundry, upper hall (except storage room). Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP)
ประเภท
Exterior receptacle
วัสดุ - อุปกรณ์
2 sets of flat wall mounted receptacle by “HACO” 3 slots cover model Qx W1933 and 3 pin receptable model W8416V2 (ST-MSB-SBL-STP) with soft rubber waterproof case model IPW553-WH / IPW553-ST. Select 1 color from White, Matt Black (ST)
ประเภท
Telephone outlet
วัสดุ - อุปกรณ์
2 sets of flat wall mounted telephone outlet by “HACO” cover model Qx W1931 (ST-MSB-SBL-STP) and 6 core telephone outlet RJ12 model PR-P024 W8201TU. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP)
ประเภท
T.V. outlet
วัสดุ - อุปกรณ์
2 sets of Flat wall mounted T.V. outlet by “HACO” cover model Qx W1931 (ST-MSB-SBL-STP) and 75 ohm T.V. outlet model W8201TV. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP)
ประเภท
LAN outlet
วัสดุ - อุปกรณ์
5 sets of Flat wall mounted LAN outlet by “HACO” cover model Qx W1931 (ST-MSB-SBL-STP) and CAT6 LAN outlet model W8211PC. Select 1 color from White, Matt Black (ST), Matt Grey (MSB), Matt Dark (SBL), Taupe (STP)
ประเภท
Emergency light
วัสดุ - อุปกรณ์
2 sets of twin LED lamp head emergency light at stair hall or as drawing specified.
ประเภท
Luminaire
วัสดุ - อุปกรณ์
Total budget not over 50,000 Baht
ประเภท
ELECTRICITY AND WATER METER
วัสดุ - อุปกรณ์
ประเภท
Permanent electric meter
วัสดุ - อุปกรณ์
30 Amps 3 phases meter. Fee and meter deposit covered by company. (Exclude the service area extension fee)
ประเภท
Permanent water meter
วัสดุ - อุปกรณ์
3/4" Diameter meter, Fee and meter deposit covered by company. (Exclude the service area extension fee)
ประเภท
PAINTING
วัสดุ - อุปกรณ์
BY TOA
ประเภท
External wall
วัสดุ - อุปกรณ์
External acrylic paint "TOA": Supershield or equal,1 primer and 2 final coated
ประเภท
Internal wall
วัสดุ - อุปกรณ์
Internal acrylic paint "TOA": Supershield Duraclean A+ or equal,1 primer and 2 final coated
ประเภท
Steel surface/HDF panel
วัสดุ - อุปกรณ์
Emulsion paint "TOA": Glipton or equal 1 primer and 2 final coated
ประเภท
Facia/Fiber Cement Board
วัสดุ - อุปกรณ์
External acrylic paint "TOA": Supershield or equal,1 primer and 2 final coated
ประเภท
OTHER WORK
วัสดุ - อุปกรณ์
ประเภท
Termite protection system
วัสดุ - อุปกรณ์
“BYER”: Agenda termite chemical or equal spray on ground and 1 meter around the building. Springer system and PVC tube piping for termite protection chemical is installed beneath the first floor structure for termite protection chemical.
ประเภท
Tile adhesive
วัสดุ - อุปกรณ์
Glue cement by SCG, WEBER, CROCODILE or equal
The company reserves the right to make changes to certain items as deemed appropriate. However, the total value will not be less than what is specified in the above list and does not include the following additional construction items:
- Demolition of existing buildings or other structures
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
6. Warranty
| categories | materials - equipment | images |
|---|---|---|
| Structure | 20 year warranty | |
| General work | 2 year warranty exclude natural depreciation of materials due to long used and misused |
ประเภท
Structure
วัสดุ - อุปกรณ์
20 year warranty
ประเภท
General work
วัสดุ - อุปกรณ์
2 year warranty exclude natural depreciation of materials due to long used and misused
The company reserves the right to make changes to certain items as deemed appropriate. However, the total value will not be less than what is specified in the above list and does not include the following additional construction items:
- Demolition of existing buildings or other structures
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
- Interior decoration and landscaping
- External drainage system beyond the property boundary
- Installation of mosquito nets, wrought iron for doors and windows, rain gutters
- Air conditioning system
share
